Runes On Bitcoin

BTC -> ICP: For any existing runes tokens on bitcoin, it is possible to bridge them to icp by having Omnity create the corresponding icrc tokens on the icp side.

It be achieved by using generate_ticket on Bitcoin based on where you want to utilize the runes tokens:

Canister IDChain Id
OMNITY_HUB7wupf-wiaaa-aaaar-qaeya-cainone
OMNITY_SETTLEMENT_BITCOIN7rvjr-3qaaa-aaaar-qaeyq-caiBitcoin
  • For btc to icp, please use generate_ticket from Bitcoin as an transfer operation.

Workflow:​

1. Get the bitcoin deposit address from get_btc_address by providing the target chain id and the receiver address as a derivative path. And this bitcoin deposit address is owned by the bitcoin customs canister(thanks to the chain key feature). Generate a txid (transaction hash) from a PSBT by signing it with lasereyes. This action is to lock the runes tokens by transfering them to the bitcoin deposit address.

2. Put the txid as one of the parameter into generate_ticket from your dapp.

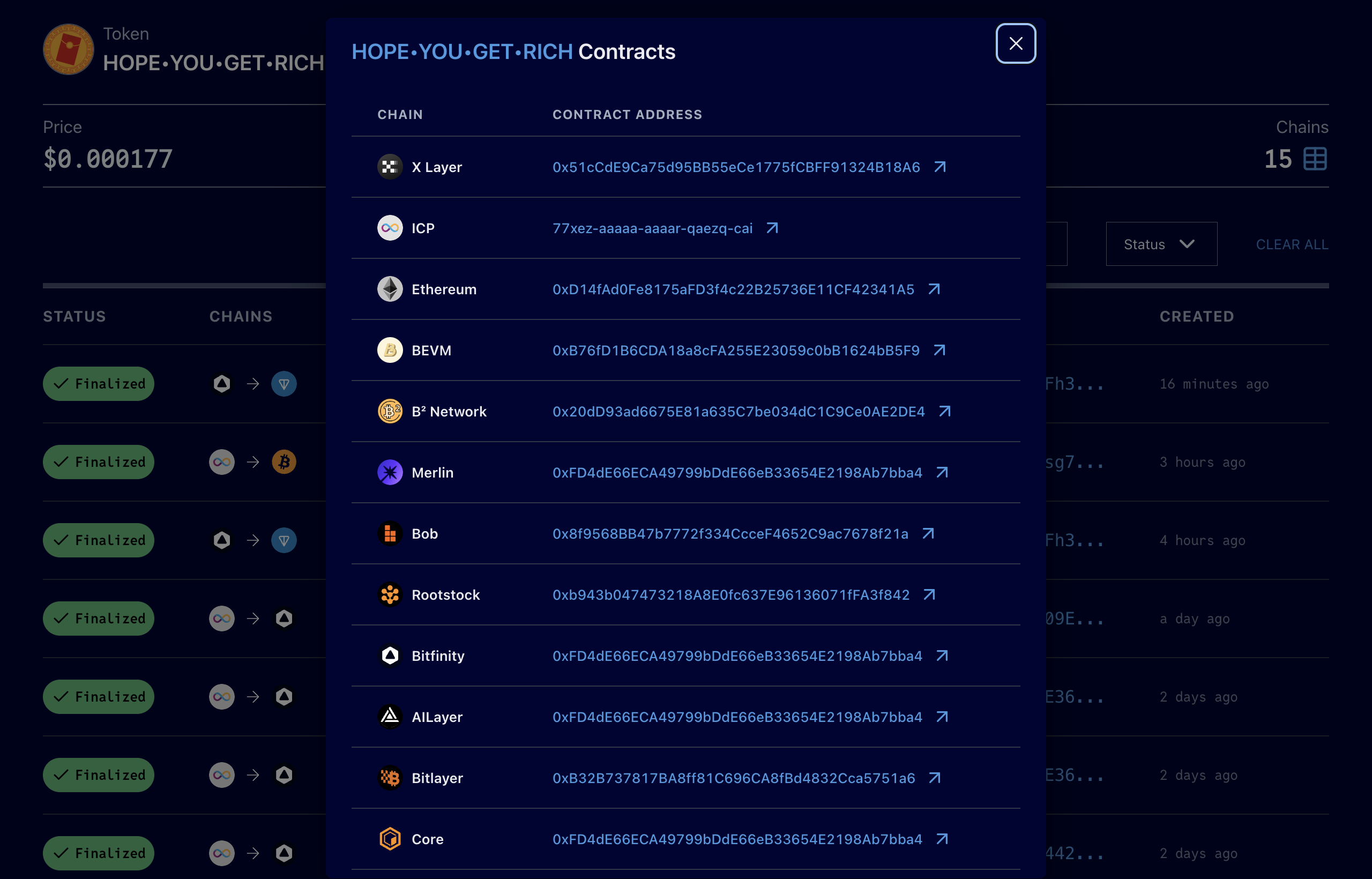

3. Go to Omnity Explorer to track the generated ticket status.

Bitcoin​

Update:

generate_ticket​

Generate an cross-chain transaction from the bitcoin network on Omnity.

generate_ticket(args: GenerateTicketArgs) -> Result<(), GenerateTicketError>
Parameters:
req: GenerateTicketArgs - struct containing:
        * target_chain_id: String
        * receiver: String
        * rune_id: String
        * amount: String
        * txid: String - the transaction id from the bitcoin transaction

Returns:
Result: a variant containing either:
        Ok: the operation succeeded, but there is no additional value or data to return
        GenerateTicketError: the operation failed, and the GenerateTicketError provides details about the failure
Rust Input Example:
# The amount is multiplied by the decimals of the runes(e.g. $HOPE•YOU•GET•RICH has two decimals so the input will be 10*100).

let args = GenerateTicketArgs {
            target_chain_id: "eICP".to_string(),
            receiver: "hijd3-ferev-ybojm-nailk-pdk3t-l2h3o-h6cdy-mfynr-p3oen-d67mg-5ae".to_string(),
            rune_id: "840000:846".to_string(),
            amount: 1000,
            txid: "6368ec94cfd560d5f3b9656ad142422080dede78d4b8e0afa9228351988778ee".to_string(),
        };

Query:

release_token_status​

Returns the status of the runes tokens withdrawal operation

release_token_status(ticket_id: String) -> ReleaseTokenStatus
Returns:
ReleaseTokenStatus: a enum containing:
        * Unknown - the request id is either invalid or too old
        * Pending - the request is in the batch queue
        * Signing - waiting for a signature on a transaction satisfy this request
        * Sending(String) - sending the transaction satisfying this request
        * Submitted(String) - awaiting for confirmations on the transaction satisfying this request
        * Confirmed(String) - confirmed a transaction satisfying this request

get_btc_address​

Generate a bitcoin address using the target chain and receiver as the derivation path, and use it as the token locking account.

get_btc_address(args: GetBtcAddressArgs) -> String
Parameters:
arg: GetBtcAddressArgs - a struct containing:
                    target_chain_id: String
                    receiver: String - a principal id/Account(in hex format, icrc ledger supports account id)

get_xpub_key​

MAINNET_XPUBKEY

get_xpub_key() -> ECDSAPublicKey
Returns:
arg: ECDSAPublicKey - a struct containing:
                    public_key - Vec<u8>
                    chain_code - Vec<u8>

generate_ticket_status​

Retrieve the status of ticket_id generation operation.

generate_ticket_status(ticket_id: String) -> GenTicketStatus
Returns:
GenTicketStatus - an enum containing:
    Unknown,
    Pending(GenTicketRequestV2)
    Confirmed(GenTicketRequestV2)
    Finalized(GenTicketRequestV2)

GenTicketRequestV2 - a struct containing:
        * address - String
        * target_chain_id - String
        * receiver - String
        * token_id - TokenId
        * rune_id - RuneId
        * amount - u128
        * txid - Txid
        * new_utxos - Vec<Utxo>
        * received_at - u64

get_runes_oracles​

Get the list of runes oracles canister ids.

get_runes_oracles() -> Vec<Principal>
Returns:
Vec<Principal>: a list of the runes oracle canister ids

estimate_redeem_fee​

Get the estimated fee needed for redeeming chain_id on bitcoin network.

estimate_redeem_fee(arg: EstimateFeeArgs) -> RedeemFee
Parameters:
arg: EstimateFeeArgs - a struct containing:
        rune_id: RuneId
        amount: Option<u128>

Returns:
RedeemFee(bitcoin_fee: u64) - the fee amount

get_chain_list​

Retrieve a list of chains that connect with the bitcoin network.

get_chain_list() -> Vec<Chain>
Returns:
Vec<Chain>: struct containing:
        chain_id: ChainId
        canister_id: String
        chain_type: ChainType
        chain_state: ChainState
        contract_address: Option<String>
        counterparties: Option<Vec<ChainId>>
        fee_token: Option<TokenId>

get_token_list​

Retrieve a list of tokens available on the bitcoin network.

get_token_list() -> Vec<TokenResp>
Returns:
Vec<TokenResp>: struct containing:
        token_id: TokenId
        symbol: String
        decimals: u8
        icon: Option<String>
        rune_id: Option<String>

Hub​

Update:

add_runes_token​

Add new runes tokens to Omnity

add_runes_token(args: AddRunesTokenReq) -> Result<(), SelfServiceError>
Parameters:
args: AddRunesTokenReq - a struct containing:
            * rune_id: String
            * symbol: String
            * icon: String
            * dest_chain: ChainId - A String

Returns:
Result: a variant containing either:
        Ok: the operation succeeded, but there is no additional value or data to return
        SelfServiceError: the operation failed, and the SelfServiceError provides details about the failure
To Pay Fee
# Please note that a 10 ICP token addition fee is required, and the payment must be sent to AccountIdentifier::new(omnity_hub_canister_id, &your_principal_subaccount), see how to convert your principal to your_principal_subaccount:
pub fn principal_to_subaccount(principal_id: &Principal) -> Subaccount {
        let mut subaccount = [0; std::mem::size_of::<Subaccount>()];
        let principal_id = principal_id.as_slice();
        subaccount[0] = principal_id.len().try_into().unwrap();
        subaccount[1..1 + principal_id.len()].copy_from_slice(principal_id);

        Subaccount(subaccount)
}

Connecting two chains

link_chains(args: LinkChainReq) -> Result<(), SelfServiceError>
Parameters:
args: LinkChainReq - a struct containing:
            * chain1: ChainId - A String
            * chain2: ChainId - A String

Returns:
Result: a variant containing either:
        Ok: the operation succeeded, but there is no additional value or data to return
        SelfServiceError: the operation failed, and the SelfServiceError provides details about the failure

add_dest_chain_for_token​

Connects the token to the chain

add_dest_chain_for_token(args: AddDestChainArgs) -> Result<(), SelfServiceError>
Parameters:
args: AddDestChainArgs - a struct containing:
            * token_id: String
            * dest_chain: ChainId - A String

Returns:
Result: a variant containing either:
        Ok: the operation succeeded, but there is no additional value or data to return
        SelfServiceError: the operation failed, and the SelfServiceError provides details about the failure

Query:

get_total_tx​

Get the total number of transactions on Omnity.

get_total_tx() -> Result<u64, Error>
Returns:
Result: a variant containing either:
        u64: the total number of transactions
        Error: an error message as a string will be returned if the operation fails

query_tx_hash​

Query the transaction hash for the ticket_id.

query_tx_hash(ticket_id: TicketId) -> Result<TxHash, Error>
Returns:
Result: a variant containing either:
        TxHash: the transaction hash
        Error: an error message as a string will be returned if the operation fails

get_self_service_fee​

Obtain the fees for adding both a chain and a token.

get_self_service_fee() -> SelfServiceFee
Returns:
Result: a variant containing either:
        SelfServiceFee: a struct containing:
            * add_token_fee: u64
            * add_chain_fee: u64
        Error: an error message as a string will be returned if the operation fails

get_fee_account​

Get the account to which the transaction fee is sent.

get_fee_account(principal: Option<Principal>) -> AccountIdentifier
Parameters:
principal: the account to which the transaction fee is sent

Returns:
AccountIdentifier: the fee account

get_chains​

Specify filters to narrow down the list of chains based on the chain_type and chain_state and manage pagination by providing an offset and limit.

get_chains(chain_type: Option<ChainType>, chain_state: Option<ChainState>, offset: usize, limit: usize) -> Result<Vec<Chain>, Error>
Parameters:
chain_type: Option<ChainType>
chain_state: Option<ChainState>
offset: usize
limit: usize

Returns:
Result: a variant containing either:
        Vec<Chain>: a struct containing:
            * chain_id: ChainId
            * canister_id: String
            * chain_type: ChainType
            * chain_state: ChainState
            * contract_address: Option<String>
            * counterparties: Option<Vec<ChainId>>
            * fee_token: Option<TokenId>
        Error: an error message as a string will be returned if the operation fails

get_chain​

Retrieve the metadata for the chain_id.

get_chain(chain_id: String) -> Result<Chain, Error>
Returns:
Result: a variant containing either:
        Chain: a struct containing:
            * chain_id: ChainId,
            * canister_id: String
            * chain_type: ChainType
            * chain_state: ChainState
            * contract_address: Option<String>
            * counterparties: Option<Vec<ChainId>>
            * fee_token: Option<TokenId>
        Error: an error message as a string will be returned if the operation fails

get_tokens​

Specify filters to narrow down the list of tokens metadata based on the either ChainId or TokenId and manage pagination by providing an offset and limit.

get_tokens(chain_id: Option<ChainId>, token_id: Option<TokenId>, offset: usize, limit: usize) -> Result<Vec<TokenResp>, Error>
Parameters:
chain_id: Option<ChainId>
token_id: Option<TokenId>
offset: usize
limit: usize

Returns:
Result: a variant containing either:
        Vec<TokenResp>: a struct containing:
            * token_id: TokenId
            * name: String
            * symbol: String
            * decimals: u8
            * icon: Option<String>
            * rune_id: Option<String>
        Error: an error message as a string will be returned if the operation fails

get_fees​

Specify filters to narrow down the list of fees based on the either ChainId or TokenId and manage pagination by providing an offset and limit.

get_fees(chain_id: Option<ChainId>,token_id: Option<TokenId>,offset: usize,limit: usize) -> Result<Vec<(ChainId, TokenId, u128)>, Error>
Parameters:
chain_id: Option<ChainId>
token_id: Option<TokenId>
offset: usize
limit: usize

Returns:
Result: a variant containing either:
        Vec<(ChainId, TokenId, u128)>: chain id, token id, the fee amount
        Error: an error message as a string will be returned if the operation fails

get_chain_tokens​

Specify filters to narrow down the list of token amount on a chain based on the either ChainId or TokenId and manage pagination by providing an offset and limit.

get_chain_tokens(chain_id: Option<ChainId>,token_id: Option<TokenId>,offset: usize,limit: usize) -> Result<Vec<TokenOnChain>, Error>
Parameters:
chain_id: Option<ChainId>
token_id: Option<TokenId>
offset: usize
limit: usize

Returns:
Result: a variant containing either:
        Vec<TokenOnChain>: a struct containing:
                    * chain_id: ChainId
                    * token_id: TokenId
                    * amount: u128
        Error: an error message as a string will be returned if the operation fails

get_tx​

Retrieve the metadata for the transaction using the TicketId.

get_tx(ticket_id: TicketId) -> Result<Ticket, Error>
Parameters:
ticket_id: TicketId

Returns:
Result: a variant containing either:
        Vec<Ticket>: a struct containing:
                    * ticket_id: TicketId,
                    * ticket_type: TicketType
                    * ticket_time: Timestamp
                    * src_chain: ChainId
                    * dst_chain: ChainId
                    * action: TxAction
                    * token: TokenId
                    * amount: String
                    * sender: Option<Account>
                    * receiver: Account
                    * memo: Option<Vec<u8>>
        Error: an error message as a string will be returned if the operation fails

get_txs_with_chain​

Retrieve a list of transactions based on src_chain, dst_chain, token_id, time_range and manage pagination by providing an offset and limit.

get_txs_with_chain(src_chain: Option<ChainId>, dst_chain: Option<ChainId>, token_id: Option<TokenId>, time_range: Option<(u64, u64)>, offset: usize, limit: usize) -> Result<Vec<Ticket>, Error>
Parameters:
src_chain: Option<ChainId>
dst_chain: Option<ChainId>
token_id: Option<TokenId>
time_range: Option<(u64, u64)>
offset: usize
limit: usize

Returns:
Result: a variant containing either:
        Vec<Ticket>: a struct containing:
                    * ticket_id: TicketId,
                    * ticket_type: TicketType
                    * ticket_time: Timestamp
                    * src_chain: ChainId
                    * dst_chain: ChainId
                    * action: TxAction
                    * token: TokenId
                    * amount: String
                    * sender: Option<Account>
                    * receiver: Account
                    * memo: Option<Vec<u8>>
        Error: an error message as a string will be returned if the operation fails

get_txs_with_account​

Retrieve a list of transactions based on sender, receiver, token_id, time_range and manage pagination by providing an offset and limit.

get_txs_with_account(sender: Option<ChainId>, receiver: Option<ChainId>, token_id: Option<TokenId>, time_range: Option<(u64, u64)>, offset: usize, limit: usize) -> Result<Vec<Ticket>, Error>
Parameters:
sender: Option<ChainId>
receiver: Option<ChainId>
token_id: Option<TokenId>
time_range: Option<(u64, u64)>
offset: usize
limit: usize

Returns:
Result: a variant containing either:
        Vec<Ticket>: a struct containing:
                    * ticket_id: TicketId,
                    * ticket_type: TicketType
                    * ticket_time: Timestamp
                    * src_chain: ChainId
                    * dst_chain: ChainId
                    * action: TxAction
                    * token: TokenId
                    * amount: String
                    * sender: Option<Account>
                    * receiver: Account
                    * memo: Option<Vec<u8>>
        Error: an error message as a string will be returned if the operation fails

get_txs​

Retrieve all historical transactions from the start.

get_txs(offset: usize, limit: usize) -> Result<Vec<Ticket>, Error>
Parameters:
offset: usize - this is used for pagination. It tells the api where to start fetching tickets from. for example, if you already fetched 100 tickets, setting offset to 100 would return the next 100 tickets
limit: usize - this specifies the maximum number of tickets to fetch in a single call. It's like setting the page size for your results (e.g., get 50 tickets at a time).

Returns:
Result: a variant containing either:
        Vec<Ticket>: a struct containing:
                    * ticket_id: TicketId,
                    * ticket_type: TicketType
                    * ticket_time: Timestamp
                    * src_chain: ChainId
                    * dst_chain: ChainId
                    * action: TxAction
                    * token: TokenId
                    * amount: String
                    * sender: Option<Account>
                    * receiver: Account
                    * memo: Option<Vec<u8>>
        Error: an error message as a string will be returned if the operation fails

get_chain_metas​

Retrieve all chain metadata and manage pagination by providing an offset and limit.

get_chain_metas(offset: usize, limit: usize) -> Result<Vec<ChainMeta>, Error>
Parameters:
offset: usize - this is used for pagination. It tells the api where to start fetching tickets from. for example, if you already fetched 100 tickets, setting offset to 100 would return the next 100 tickets
limit: usize - this specifies the maximum number of tickets to fetch in a single call. It's like setting the page size for your results (e.g., get 50 tickets at a time).

Returns:
Result: a variant containing either:
        Vec<ChainMeta>: a struct containing:
                    * chain_id: ChainId
                    * canister_id: String
                    * chain_type: ChainType
                    * chain_state: ChainState
                    * contract_address: Option<String>
                    * counterparties: Option<Vec<ChainId>>
                    * fee_token: Option<TokenId>
        Error: an error message as a string will be returned if the operation fails

get_chain_size​

Get the total number of chains on Omnity.

get_chain_size() -> Result<u64, Error>
Returns:
Result: a variant containing either:
        u64: the total number of chains
        Error: an error message as a string will be returned if the operation fails

get_token_metas​

Retrieve all token metadata and manage pagination by providing an offset and limit.

get_token_metas(offset: usize, limit: usize) -> Result<Vec<TokenMeta>, Error>
Parameters:
offset: usize - this is used for pagination. It tells the api where to start fetching tickets from. for example, if you already fetched 100 tickets, setting offset to 100 would return the next 100 tickets
limit: usize - this specifies the maximum number of tickets to fetch in a single call. It's like setting the page size for your results (e.g., get 50 tickets at a time).

Returns:
Result: a variant containing either:
        Vec<TokenMeta>: a struct containing:
                    * token_id: TokenId
                    * name: String
                    * symbol: String
                    * issue_chain: ChainId
                    * decimals: u8
                    * icon: Option<String>
                    * metadata: HashMap<String, String>
                    * dst_chains: Vec<ChainId>
        Error: an error message as a string will be returned if the operation fails

get_token_size​

Get the total number of tokens on Omnity.

get_token_size() -> Result<u64, Error>
Returns:
Result: a variant containing either:
        u64: the total number of tokens
        Error: an error message as a string will be returned if the operation fails

sync_ticket_size​

Get the total number of transactions on Omnity.

sync_ticket_size() -> Result<u64, Error>
Returns:
Result: a variant containing either:
        u64: the total number of tickets excluding the pending ones
        Error: an error message as a string will be returned if the operation fails

sync_tickets​

Retrieve all ticket data and manage pagination by providing an offset and limit.

sync_tickets(offset: usize, limit: usize) -> Result<Vec<(u64, Ticket)>, Error>
Parameters:
offset: usize - this is used for pagination. It tells the api where to start fetching tickets from. for example, if you already fetched 100 tickets, setting offset to 100 would return the next 100 tickets
limit: usize - this specifies the maximum number of tickets to fetch in a single call. It's like setting the page size for your results (e.g., get 50 tickets at a time).

Returns:
Result: a variant containing either:
        Vec<(u64, Ticket)>: a list of tuple containing:
            * u64 - the ticket's sequence number
            * Ticket - the detailed information associated with the ticket:
                * ticket_id: TicketId,
                * ticket_type: TicketType
                * ticket_time: Timestamp
                * src_chain: ChainId
                * dst_chain: ChainId
                * action: TxAction
                * token: TokenId
                * amount: String
                * sender: Option<Account>
                * receiver: Account
                * memo: Option<Vec<u8>>
        Error: an error message as a string will be returned if the operation fails

get_pending_ticket_size​

Get the total number of pending tickets on Omnity.

get_pending_ticket_size() -> Result<u64, Error>
Returns:
Result: a variant containing either:
        u64: the number of pending tickets
        Error: an error message as a string will be returned if the operation fails

get_pending_tickets​

Retrieve all pending ticket data.

get_pending_tickets(offset: usize, limit: usize) -> Result<Vec<(TicketId, Ticket)>, Error>
Parameters:
offset: usize - this is used for pagination. It tells the api where to start fetching tickets from. for example, if you already fetched 100 tickets, setting offset to 100 would return the next 100 tickets
limit: usize - this specifies the maximum number of tickets to fetch in a single call. It's like setting the page size for your results (e.g., get 50 tickets at a time).

Returns:
Result: a variant containing either:
        Vec<(TicketId, Ticket)>: a list of tuple containing:
            * TicketId - the ticket id
            * Ticket - the detailed information associated with the ticket.
        Error: an error message as a string will be returned if the operation fails

Last updated on July 21, 2025
